Ce capteur n'étant pas “Grove” son test se fera parallèle des autres capteurs.

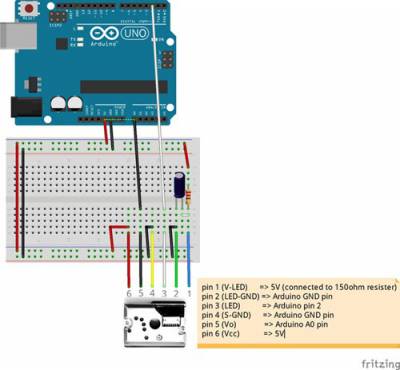

En suivant ce montage:

Avec:

• Une résistance de 150Ω
• Un condensateur de 220μF

/*
 Standalone Sketch to use with a Arduino uno and a
 Sharp Optical Dust Sensor GP2Y1010AU0F

  */

int measurePin = 0;
int ledPower = 2;

int samplingTime = 280;
int deltaTime = 40;
int sleepTime = 9680;

float voMeasured = 0;
float calcVoltage = 0;
float dustDensity = 0;

void setup(){
  Serial.begin(9600);
  pinMode(ledPower,OUTPUT);
}

void loop(){
  digitalWrite(ledPower,LOW); // power on the LED
  delayMicroseconds(samplingTime);

  voMeasured = analogRead(measurePin); // read the dust value

  delayMicroseconds(deltaTime);
  digitalWrite(ledPower,HIGH); // turn the LED off
  delayMicroseconds(sleepTime);

  // 0 - 5V mapped to 0 - 1023 integer values
  // recover voltage
  calcVoltage = voMeasured *(5/1024);

  // linear eqaution taken from http://www.howmuchsnow.com/arduino/airquality/
  // Chris Nafis (c) 2012
  dustDensity = 0.17 * calcVoltage - 0.1;

  Serial.print("Raw Signal Value (0-1023): ");
  Serial.print(voMeasured);

  Serial.print(" - Voltage: ");
  Serial.print(calcVoltage);

  Serial.print(" - Dust Density: ");
  Serial.println(dustDensity);

  delay(1000);
}
